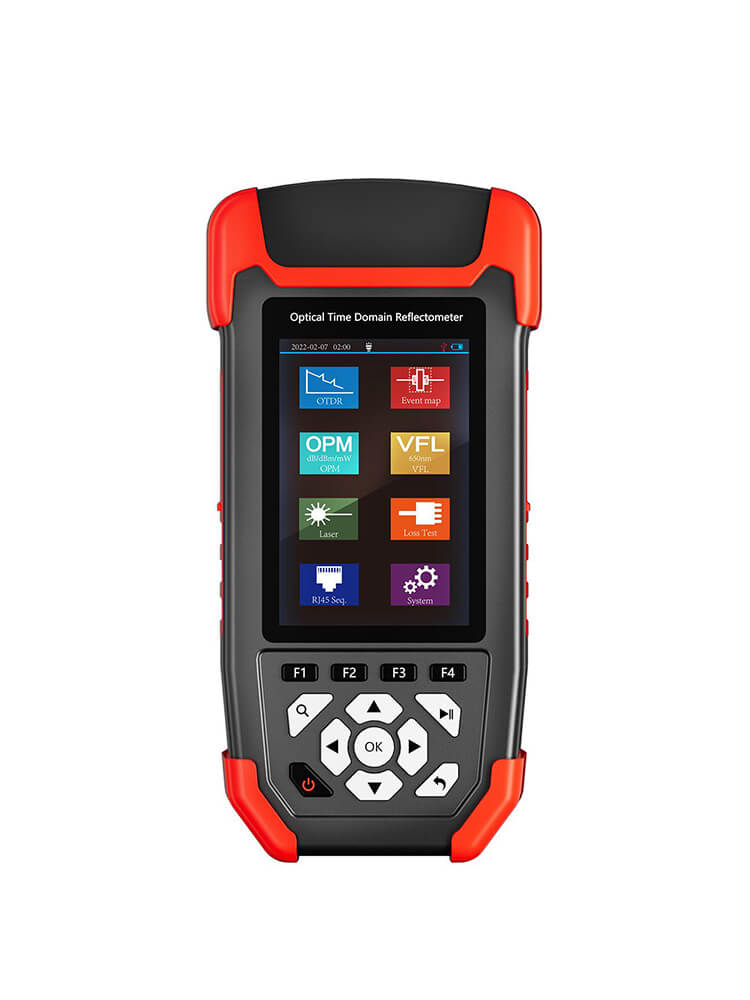

NOYAFA NF-981 Fiber Optic Tester and Fault Locator with OTDR Meter
NOYAFA NF-981 Fiber Optic Tester and Fault Locator with OTDR Meter
Features & Benefits:
- OTDR (Optical Time Domain Reflectometer) - Single-mode OTDR with a dynamic range of 22/20 decibels (dB), capable of testing over a range of 80 kilometers, equipped with SC/PC or FC/PC optical interfaces.
- Optical link intelligent analysis - OTDR software offers comprehensive test reports including Reflective Event, Reduce Event, Fiber Splitter, and Fiber End analyses.
- OPM (Optical Power Meter) - Measures optical power within a range of -50 to +26 decibel milliwatts (dBm) with six wavelength calibration capabilities.
- VFL (Visual Fault Locator) - Emits red light with an output power of 10 milliwatts (mW).
- Wire Mapping - Identifies faults such as short circuits, open circuits, and cross-connections in LAN cables.
- Length Test - Measures cable lengths ranging from 1 to 600 meters.
- Lamp - Provides a reliable light source for illumination in dim working environments.
- Rechargeable battery - Features a battery standby time exceeding 11 hours, tested for approximately 6 hours of continuous use, with a capacity of 4000 milliampere-hours (mAh), and charges via Micro USB at 5 volts and 2 amperes (A).
Product Specs
Product Specs
OTDR
- Wavelength: 1310/1550nm
- Fiber Type: G.652 SM Fiber
- Dynamic Range: 24dB/22dB
- Event Blind Zone : 10m
- ATT Blind Zone: 15m
- Test Range: 10m-60km
- Pulse Width: 5ns-10us
- Ranging Accuracy: ±(1m+Sampling Interval+0.005%xTest Distance)
- Loss Accuracy: ± 0.2dB/dB
- Sampling Points: 16k-128k
- Sampling Resolution: 0.05~8m
- Reflection Accuracy: ±3dB
- Data Storage: Internal: 2600: External: TF Card
- Laser Safety Level: Class Il level
- File Format: SOR Standard File Format
- Connector: FC/PC (Interchangeable SC、ST)or FC/APC (Interchangeable SC, ST)
OPM
- Wave Range: 800nm-1700nm
- Interface Type: Universal Joint FC/SC/ST
- Test Range: -50dBm~+26dBm
- Uncertainty:+5%
- Frequency Identification: CW/270/330/1k/2kHz
- Calibration Wavelength: 850/1270/1300/1310/1490/1550/1577/1625nm
LS
- LD Type: FPLD
- Output Wavelength: 1310/1550nm
- Output Power: 2-5dBm
- Modulation Frequency: 270/330/1k/2kHz
- Stability: CW,+0.5dB/15min (Test after15mins of preheating)
- Connector: FC/PC (Interchangeable SCST) or FC/APC (lnterchangeable SC,ST)
VFL
- Work Wavelength: 650nm土20nm
- Output Power: 10mW
- Mode: CW/1Hz/2Hz
- Connector: FCISC/ST
Other Parameters
- Dispaly: 3.5 inch Color LCD
- Data Interface: Micro USB
- External Storage: TF Card
- Power Supply: Polymer Li-battery 3.7V, 4000mAh
- Power Adapter: 5VDC, 2A
- Battery Life: Standby>20h;
- Measuring Time: >12h
- Operating Temperature: -10°C~+50°C
- Storage Temperature: -40°C~+70°C
- Relative Humidity: 0~95%

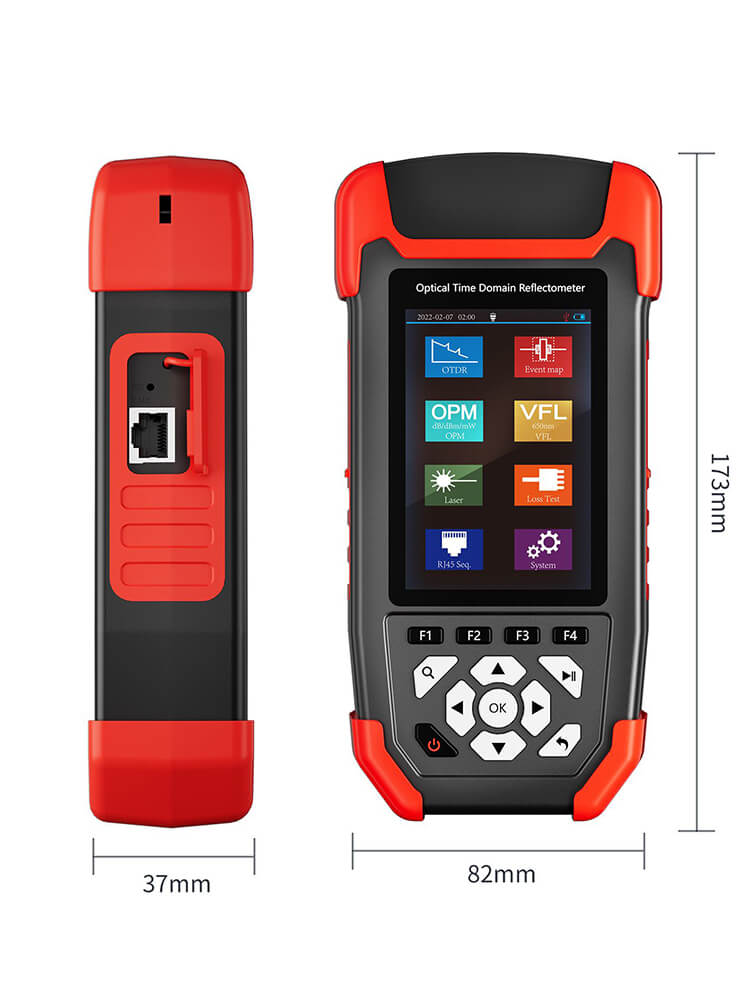

- Non Condensing Dimension: 173mmx82mmx37mm
- Weight: ≤350g
